Benit M is a Korean mass transfer process specialist founded in 2016. The company is dedicated to research and development of cutting edge distillation and energy efficiency technologies and solutions for global oil & gas, petrochemical, and chemical industries.
Not only for the services in distillation engineering, but Benit M also take step forward in the worthwhile area such as water recovery and desalination with high value and sophisticated technology. Benit M continuously conducts profound research resulting in acquiring worldwide patent rights.
Head office
#1402, IZ PLACE, 17, Sinbok-ro 6 beon-gil, Nam-gu, Ulsan, Republic of Korea, 44602
R&D center
#504, Ulsan General Business Center, 38, Hoehak 3-gil, Onsan-eup, Ulju-gun, Ulsan, Republic of Korea, 44992
FO COmbined membrane
forward osmosis activities

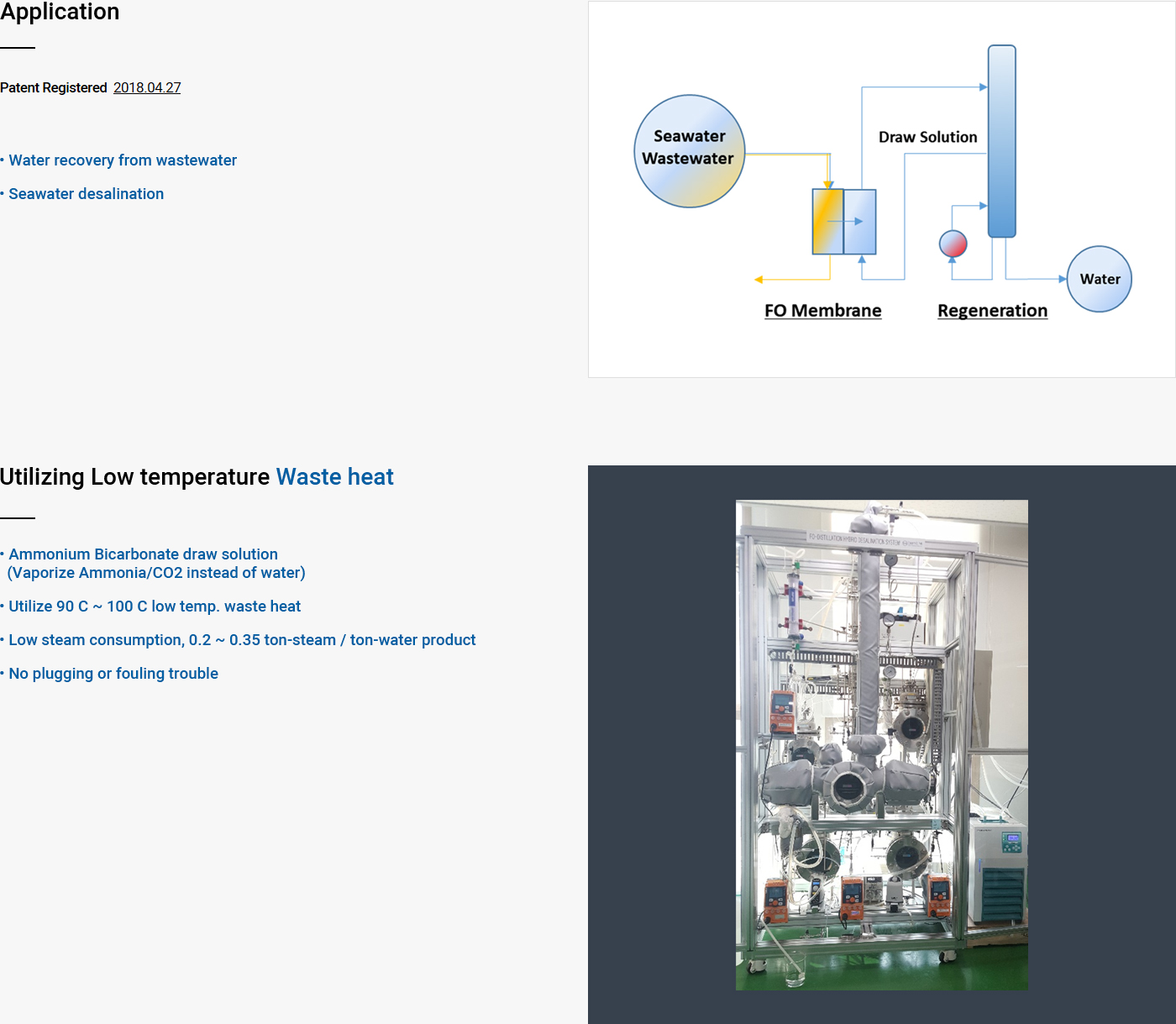

Benit M’s forward osmosis solutions are targeted energy efficient water recovery from industrial wastewater and desalination of seawater. The company has developed an FO Combined Membrane prototype with promising results showing continuous pure water production with a quality < 1 μs/cm.

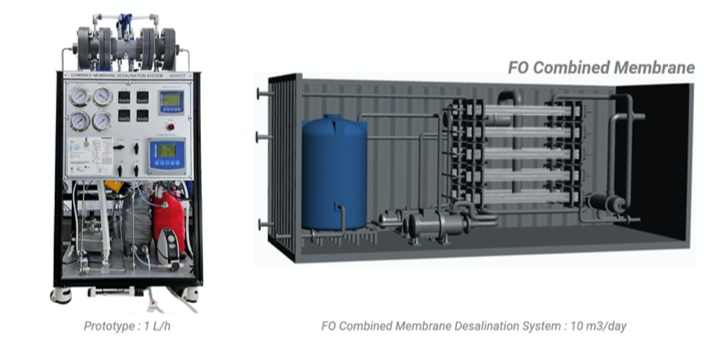

Recently, Benit M delivers Forward Osmosis Combined Membrane system which enables efficient water production for desalination and water recovery.

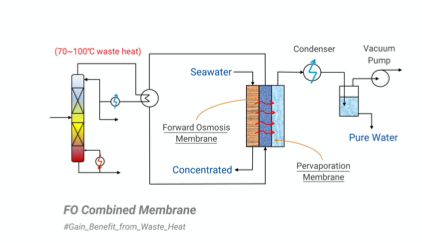

This innovative design allows water passing from the feed solution to the draw solution to be simultaneously separated through the pervaporation (PV) process.
FO performance is not deteriorated by the draw solution being diluted along with the water permeation, as the draw solution is regenerated immediately by a PV module arranged adjacent to the FO module inside the FO‐PV combined module.
This technology is particularly suited for applications such as generating boiler feed water on ships, where waste heat from engines is readily available, and producing ultra-pure water for semiconductor manufacturing, which demands high water quality with minimal impurities.
FO COMBINED MEMBRANE
“Gain Benefit from Waste Heat”
- One-step solution for pure water production from seawater
- No high-pressure pump (general industrial pump 2 ~ 4 barg)
- Utilize low-temperature waste heat (70 ~ 100 C)
- No additional draw solution regeneration
- Saltwater as a draw solution
- High performance/flux of FO can be maintained
- Water product quality: < 1 μs/cm
Application:
Seawater desalination
Embedded in Ultra Pure Water system
for Zero Liquid Discharge
