Plate and frame forward osmosis membrane modules

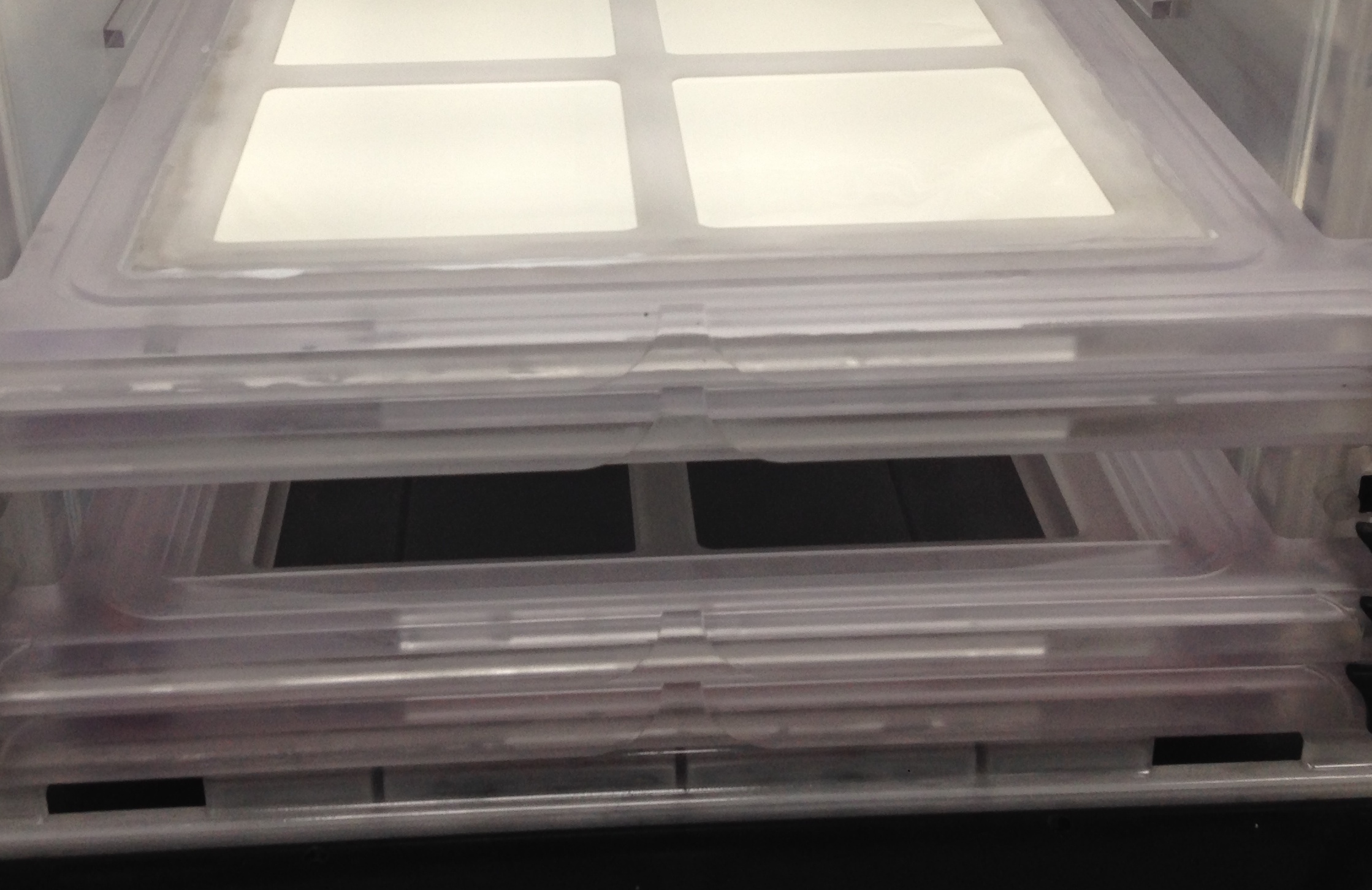

Plate and frame membrane element

Plate & frame modules made from flat sheet forward osmosis membranes

Plate & frame (stacked) FO module summary

Packing density typically below 100 m2/m3
Advantage ease of operation when waste streams contain high amounts of fouling agents and/or solutions entering the module have high viscosities
Disadvantage large footprint increases space requirements – not suitable for high volume applications

Detailed description

Plate & frame membrane modules – also known as stacked membrane modules – are used in many water treatment applications where the waste streams to be treated contain high amounts of fouling agents and/or have high viscosities. In fact, many commercial membrane bioreactor (MBR) modules belong to the plate & frame configuration. Plate & frame modules typically consist of flat sheet membranes sealed to frames, which provide the overall mechanical integrity and flow distribution needed to stack individual frames together in a modular way. Thus, individual frames function as membrane cassettes where the waste stream to be treated typically flows outside the cassette with the clean water permeating to the inner volume of the cassette for subsequent collection.

Forward osmosis plate & frame modules are – in principle – constructed in a similar manner with the added  complexity that the frame/cassette/module designs must accommodate cross flow distribution of feed and draw streams across each individual membrane layer while avoiding direct mixing of said feed and draw streams.

From an engineering point of view, it is difficult to achieve such cross flow distributions, and at the same time avoid unstirred regions, when the distance between individual membrane layers is reduced. As a result, plate and frame forward osmosis membrane modules typically have the lowest packing density / largest footprint of the 4 module design variants considered here (see the table below).

The large footprint of plate & frame forward osmosis membrane modules excludes these modules from being used in high volume applications such as municipal waste water treatment and desalination of seawater. However, in many lower volume applications, where the waste streams to be treated contain high amounts of fouling agents and/or have high viscosities, the low packing density of plate & frame modules represents an operational advantage. The reason being, that a larger distance between membrane sheets results in a lower pressure drop across the module (i.e. lower energy requirement for pumping solutions through the module) as well as a lower propensity towards clogging of flow channels due to accumulation of fouling agents.

Parameter Value
Area of individual sheets (including sealing) 0,25m2
Active membrane area per sheet (excluding sealing) 0,23m2
Thickness of individual membranes 200μm
Distance between membrane sheets 8mm
Number of sheets per module 43
Internal volume of module 0,09m3
Active area per module 9,9m2
Packing density 110



The links below lead to detailed descriptions of other forward osmosis module designs:

  1. Spiral wound forward osmosis membrane modules
  2. Tubular forward osmosis membrane modules
  3. Hollow fiber forward osmosis membrane module

9 thoughts on “Plate and frame forward osmosis membrane modules

  1. Mujahid Ur Rehman says:

    Hi Ed
    I am student of BS chemical engineering, final semester. We need FO unit for experimentation purpose. Feed to be treated is produced water from an upstream Oil & Gas company. In my opinion plate & frame configuration should suit the said feed, however you can consider it also.
    What I need to know is dimensions, active area and price, also the date of delivery most importantly.
    Seeking for your reply.
    We initially need 15 module system for feed throughput of 570 BPD.

  2. Ed Woode says:

    Hi Mujahid

    Thanks for reaching out on your exiting plans. Would it be possible for you to share some additional information with regards to the questions below?

    – What is the composition of the feed water to be treated (TDS, COD, BOD, SDI, viscosity, etc)?
    – Have you given thought to the draw solution you will be using?
    – What exactly do you mean by “15 module system”?
    – Can you give me a more detailed breakdown of the feed throughput (i.e. liters/hour) and which recovery rates you are aiming for?
    – What is your budget and expected lead time?
    – Where is the system to be located and which external conditions will it be facing?

    Cheers

    Ed

  3. Mujahid Ur Rehman says:

    Hi Ed:
    Here are the specs, you asked for:
    1) Composition: (kindly mention your e-mail, I’ve detailed composition analysis report, I’ll send it to you)
    2) At the moment we are thinking to use NaCl sol as draw.
    3) 15 module system we meant that our flow rate demands 15 modules of active area(given for plate & frame module), assuming flux of 12L/m2.hr.
    4)It is 3900 L/hr. Recovery rate is 50 volume% extraction of water from feed, into draw sol, i.e. 1950 L/hr. But this is for full scale process. On lab scale, we can select a basis(lower than full scale) according to the equipment capacity available with you.
    5) Budget is not specified yet, however you share the gross total with us, we will manage that.
    6) It is to be located in the Northern area of Pakistan, in an upstream oil field. Weather is mostly dry and severe. Temp range is (8 to 40) deg C generally.
    Hope I have given the specs you asked for.
    Looking forward to your kind reply.

  4. Goh Li May says:

    Hi Ed, do you supply the FO module without membrane to oversea? Can we use less than the 43 sheets in the module?

    • Ed Woode says:

      Hi Goh Li

      Thanks for reaching out on this. I’m afraid we do not provide FO products through the ForwardOsmosisTech Portal – only FO related knowledge.

      I think it may be difficult for you to find a FO membrane provider who will deliver their modules without membranes. Afterall, the FO membrane is the core technology in an FO module.

      Have you considered buying smaller FO test cells for your experiments?

      Cheers

      Ed

      • Christian says:

        Dear Goh Li and Mujahid,

        At Aquaporin we are developing and manufactoring FO membranes. The advantage of using our FO membranes, is that we have developed a way to integrate natures own aquaporin proteins, into the membrane, hence we have improved the FO membranes ability to reject contaminents. I will be happy to share more informations about our technology and discuss the opportunities it brings. We both have FO flatsheet membrane and FO Hollow Fibers. Please do not hesitate to contact me at cdl@aquaporin.dk.

        All the best
        Christian

  5. Motaz-Os says:

    When is the First Plat-and-Frame forward osmosis module ever introduced and if there are any other companies that successfully commercialized it beside Porifera?
    furthermore, if this technology ever been considered for Desalination since it produced more water flux than other Spiral wound membrane module.

    Thanks goes for Forwardosmosistech.

  6. Mark Perry says:

    Hi Motaz,

    To my knowledge, industrial sized plate-and-frame forward osmosis modules were only fairly recently introduced on a commercial scale – say within the last 5 years.

    I don’t think plate-and-frame modules are suitable for desalination due to their low packing density. I believe this is why Porifera seem to be focusing their commercial efforts on high-value food processing applications.

    Cheers

    Mark
