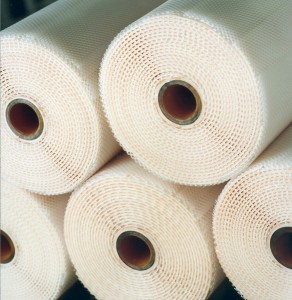

Spiral wound modules made from flat sheet forward osmosis membranes
Spiral wound module summary
| Packing density | up to 600 m2/m3 |
| Advantage | suitable for large-volume applications due to high packing density and resulting small membrane footprint |
| Disadvantage | membrane fouling is a big problem if waste water streams are not pre-treated to remove the majority of fouling agents, |
Detailed description
Spiral wound modules represent the most common membrane configuration in today’s water treatment industry. The reason mainly being a combination of high achievable packing density and the fact that spiral wound modules are based on flat sheet membranes – the most common membrane form factor in today’s membrane production industry. Spiral wound modules for reverse-osmosis mediated desalination of seawater can reach packing densities as high as 1200 m2/m3 (8 inch modules from Toray). To achieve this kind of packing density, the distance between membrane layers becomes less than 1mm, and as a result spiral wound modules tend to foul very easily if waste water streams are not pretreated before entering the modules.
When it comes to spiral wound forward osmosis modules, packing densities cannot reach the same values as is the case for spiral wound reverse osmosis modules (refer to the table below for a calculation example). The reason being, that in forward osmosis processes there must be a cross flow of solutions on either side of each individual membrane layer. This requirement increases the total thickness of spacers between membrane layers and subsequently decreases the packing efficiency. Having said that, spiral wound forward osmosis membrane modules from Hydration Technology Innovations have packing densities close to 600 m2/m3. Since flat sheet membranes are currently the predominant membrane configuration in the FO membrane production industry, it is expected that spiral wound modules will constitute the bulk of upcoming FO module products for large-volume water treatment applications. For reasons similar to what was mentioned for hollow fiber FO membrane modules, usage of spiral wound FO modules for industrial water treatment is limited to applications where waste water streams contain low concentrations of fouling agents. Such applications include:
- Desalination
- Downstream waste water processing steps
| Parameter | Value |
| Membrane width | 0,5m |
| Membrane length | 20m |
| Thickness of individual membranes | 200μm |
| Spacer thickness | 3mm |
| Inner diameter of collection tube | 10mm |
| Outer diameter of membrane roll | 278mm* |
| Internal volume of module | 0,03m3 |
| Active area per module | 9,5m2 |
| Packing density | 320 |
* See giandrandi.ch for an online calculation tool of membrane roll diameter
The links below lead to information on alternative forward osmosis module design possibilities:
- Plate and frame forward osmosis membrane modules
- Tubular forward osmosis membrane modules
- Hollow fiber forward osmosis membrane module
