Harnessing forward osmosis processes for desert restoration and desertification reversal

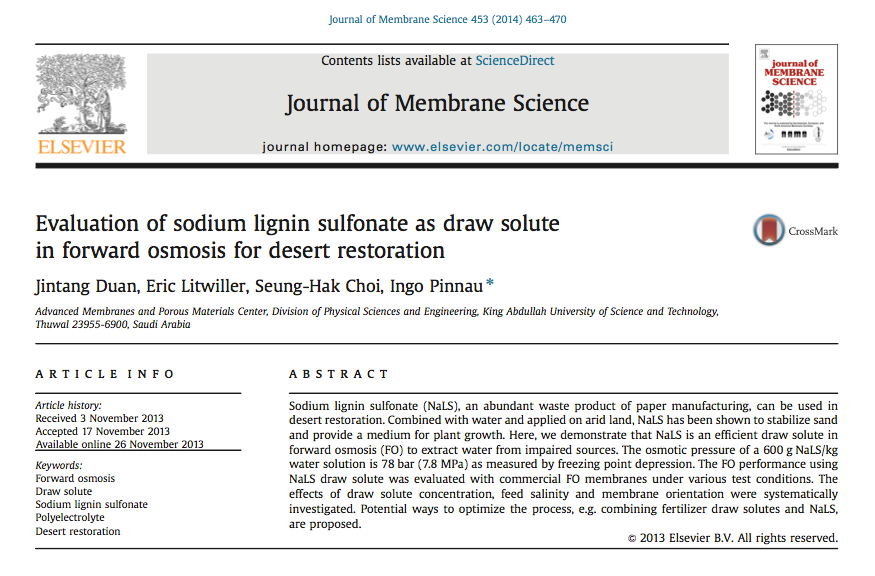

In their article “Evaluation of sodium lignin sulfonate as draw solute in forward osmosis for desert restoration” Duan et. al. describe the problem of dry land degradation to deserts through increasing loss of water, vegetation, and wildlife. This is a problem affecting up to 250 million people worldwide. To mitigate and reverse desertification the first step is to fixate sand to “immobilize sand dunes and provide an environment for seed germination”.
One way of fixating sand is to spray aqueous solutions of chemical binders onto the sand. Water drains of the surface and leaves behind a firm crust of 0,5-1cm thickness, which prevents sand migration.
Water soluble sodium lignin sulfonate (NaLS) is an effective non-toxic chemical binder that improves the organic content of sand, helps retain moisture, and provides nutrients for plants. NaLS is a waste product of the paper industry and some 50 million tons of NaLS is generated annually around the World. This makes NaLS a cost-effective chemical binder at around 400 USD/ton.
A major challenge facing desertification reversal projects is the lack of fresh water resources to produce NaLS solutions. In arid regions, brackish water, seawater, and other impaired water sources are often available but until now, energy-intensive desalination techniques have been needed to generate fresh water.
Duan et. al. suggest to utilize forward osmosis technologies to solve the water scarcity challenge in an energy-efficient manner. In the author’s proposed forward osmosis solution, NaLS is used as a draw solute for low-energy water extraction from impaired feed water sources. When the osmotic pressure of impaired feed waters is below 1,5 bar (corresponding to a 2000 ppm NaCl solution) saturated NaLS draw solutions are able to extract enough fresh water to reach a dilution of 1-2% NaLS, which corresponds to the working concentration for sand fixation. For impaired water sources with osmotic pressures above 1,5 bar (e.g. seawater, some forms of brackish water etc.) additional dilution systems are needed besides FO based water extraction systems to generate NaLS working solutions.
Here at ForwardOsmosisTech we think desert restoration using stand-alone FO systems are a great idea on paper. However, before being realized in real life, the following main challenges need to be solved:
- Logistics of transporting NaLS to desert restoration sites
- Logistics of pumping impaired water to desert restoration sites
- Developing low-energy means of providing additional dilution, when FO processes cannot extract all the water needed to generate ready-to-use chemical binder solutions
- Management of impaired water once it has been concentrated during FO processes
- Developing high-performance FO systems with reduced propensity towards fouling and concentration polarization
NB: Post image from soil-tech.com
